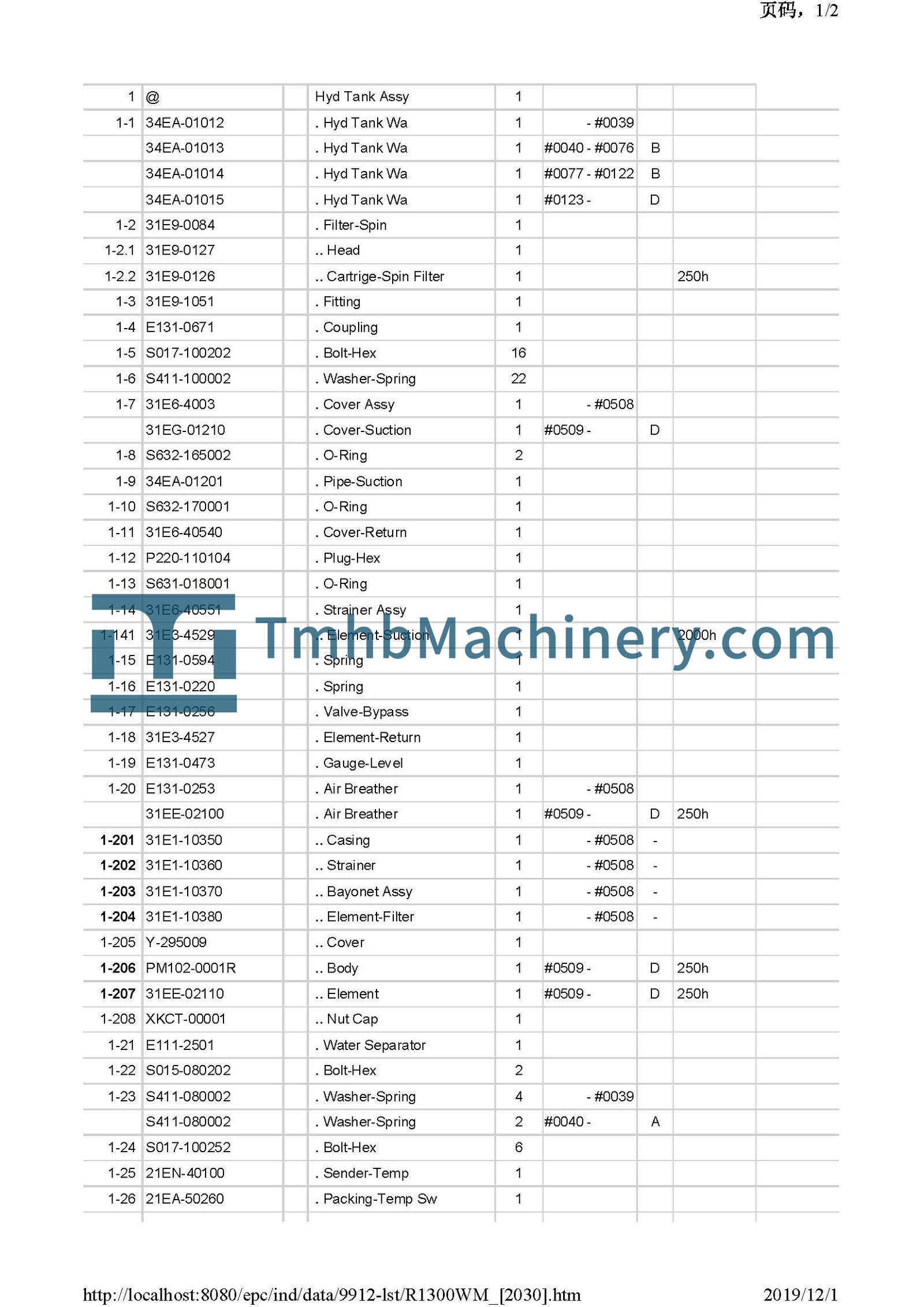

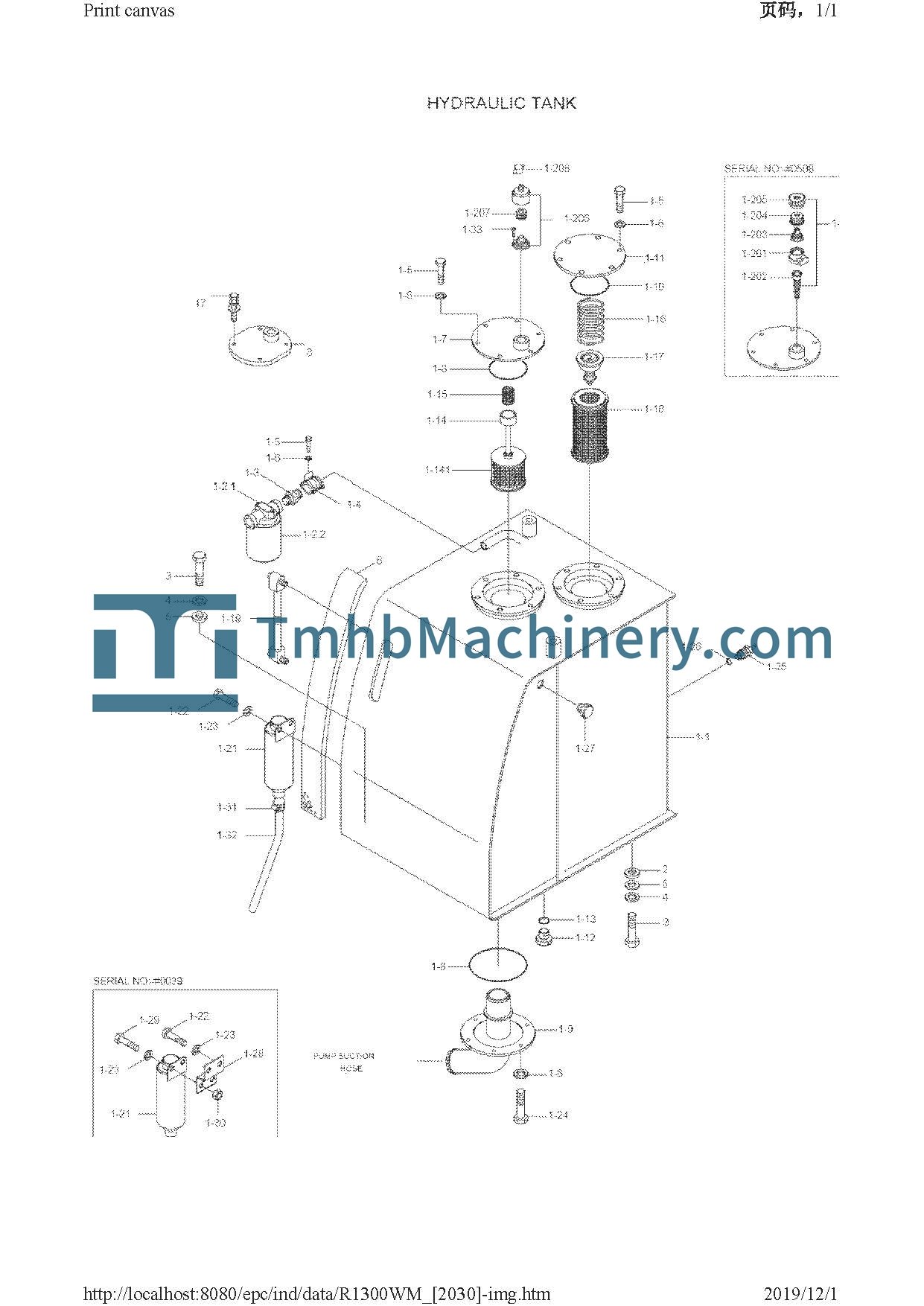

1 @ Hyd Tank Assy
1-1 34EA-01012 Hyd Tank Wa
34EA-01013 Hyd Tank Wa
34EA-01014 Hyd Tank Wa
34EA-01015 Hyd Tank Wa
1-2 31E9-0084 Filter-Spin
1-2.1 31E9-0127 Head
1-2.2 31E9-0126 Cartrige-Spin Filter
1-3 31E9-1051 Fitting
1-4 E131-0671 Coupling
1-5 S017-100202 Bolt-Hex
1-6 S411-100002 Washer-Spring
1-7 31E6-4003 Cover Assy
31EG-01210 Cover-Suction
1-8 S632-165002 O-Ring
1-9 34EA-01201 Pipe-Suction
1-10 S632-170001 O-Ring
1-11 31E6-40540 Cover-Return
1-12 P220-110104 Plug-Hex
1-13 S631-018001 O-Ring
1-14 31E6-40551 Strainer Assy
1-141 31E3-4529 Element-Suction
1-15 E131-0594 Spring
1-16 E131-0220 Spring
1-17 E131-0256 Valve-Bypass

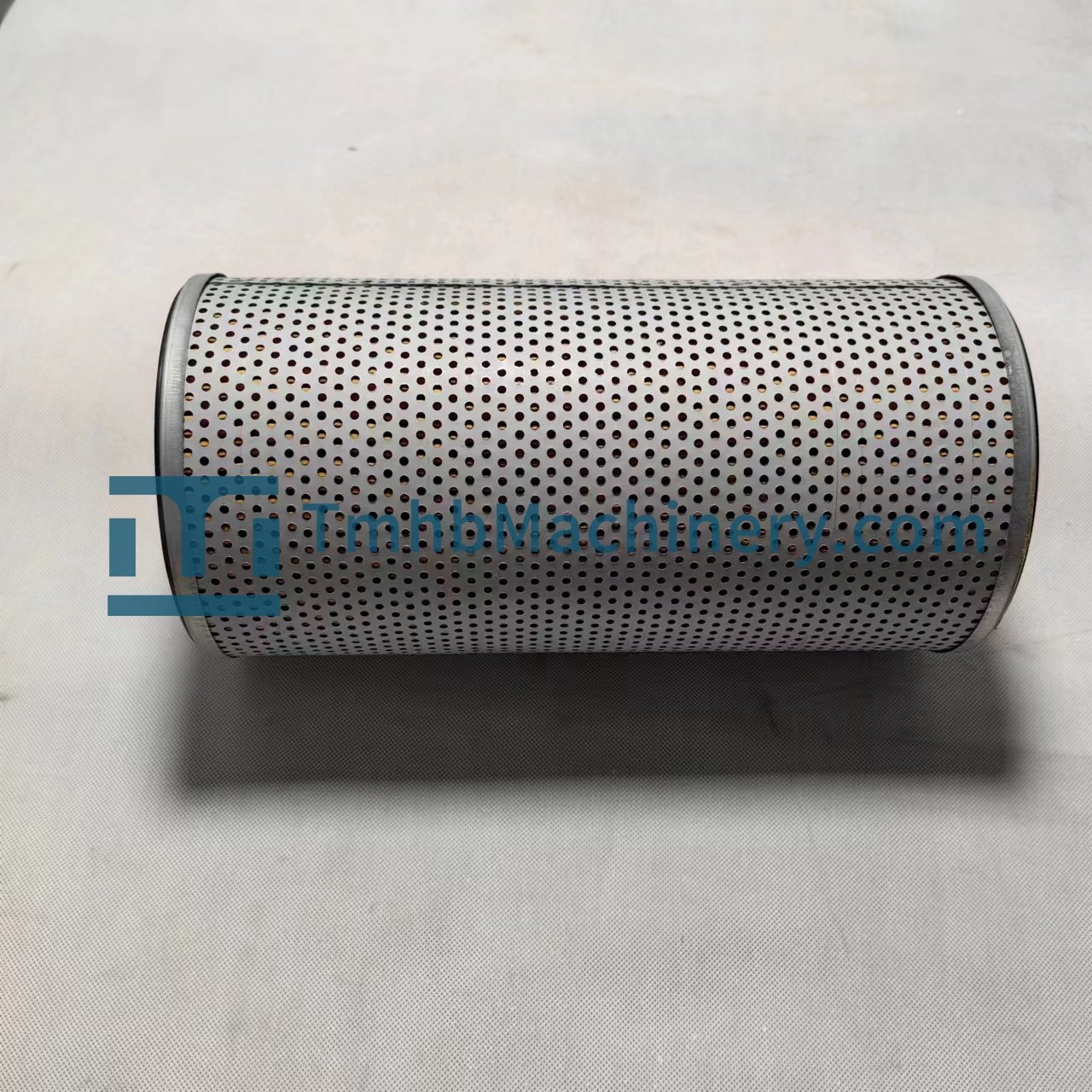

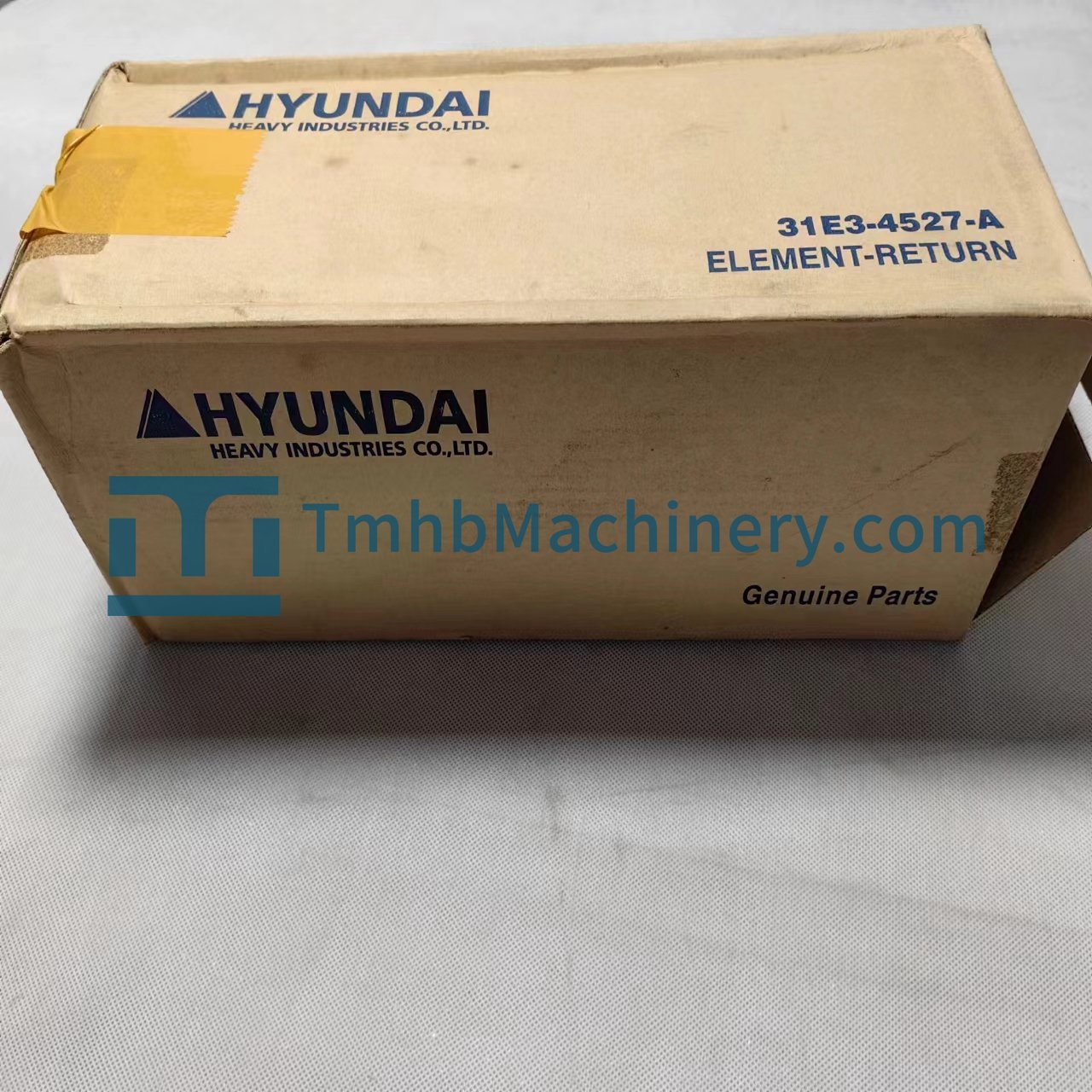

1-18 31E3-4527 Element-Return
1-19 E131-0473 Gauge-Level
1-20 E131-0253 Air Breather
31EE-02100 Air Breather
1-201 31E1-10350 Casing
1-202 31E1-10360 Strainer
1-203 31E1-10370 Bayonet Assy
1-204 31E1-10380 Element-Filter
1-205 Y-295009 Cover
1-206 PM102-0001R Body
1-207 31EE-02110 Element
1-208 XKCT-00001 Nut Cap
1-21 E111-2501 Water Separator
1-22 S015-080202 Bolt-Hex
1-23 S411-080002 Washer-Spring
S411-080002 Washer-Spring
1-24 S017-100252 Bolt-Hex
1-25 21EN-40100 Sender-Temp
1-26 21EA-50260 Packing-Temp Sw
