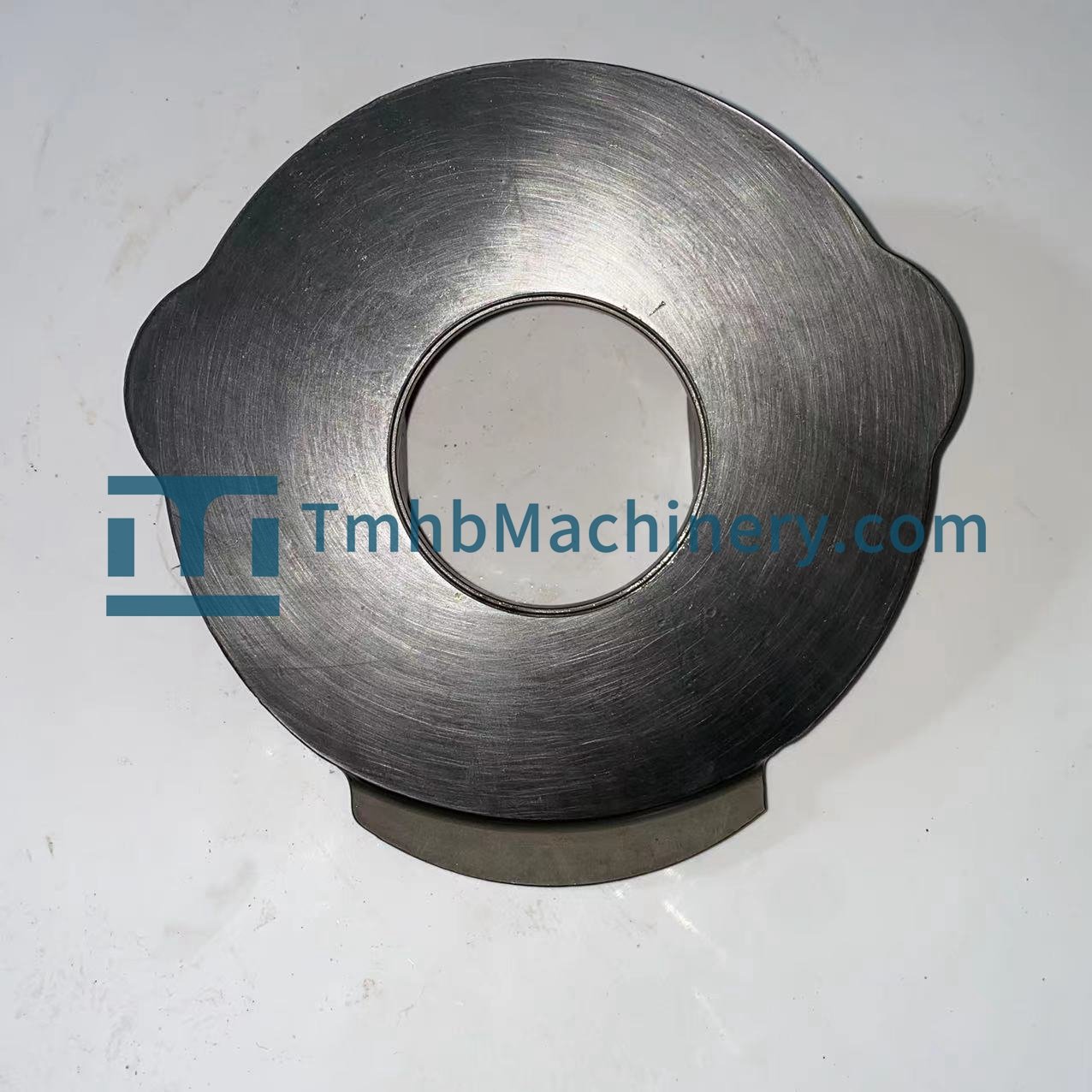

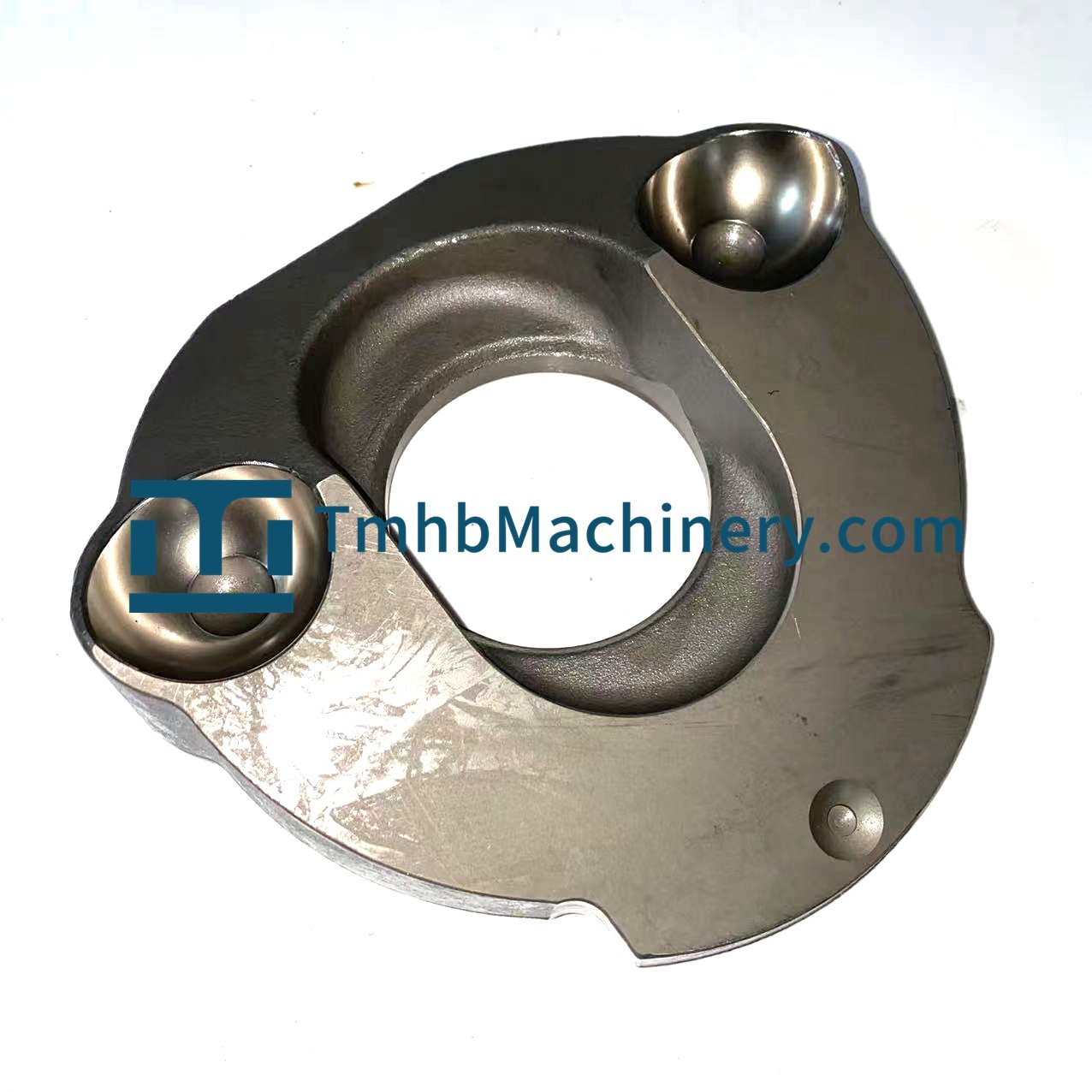

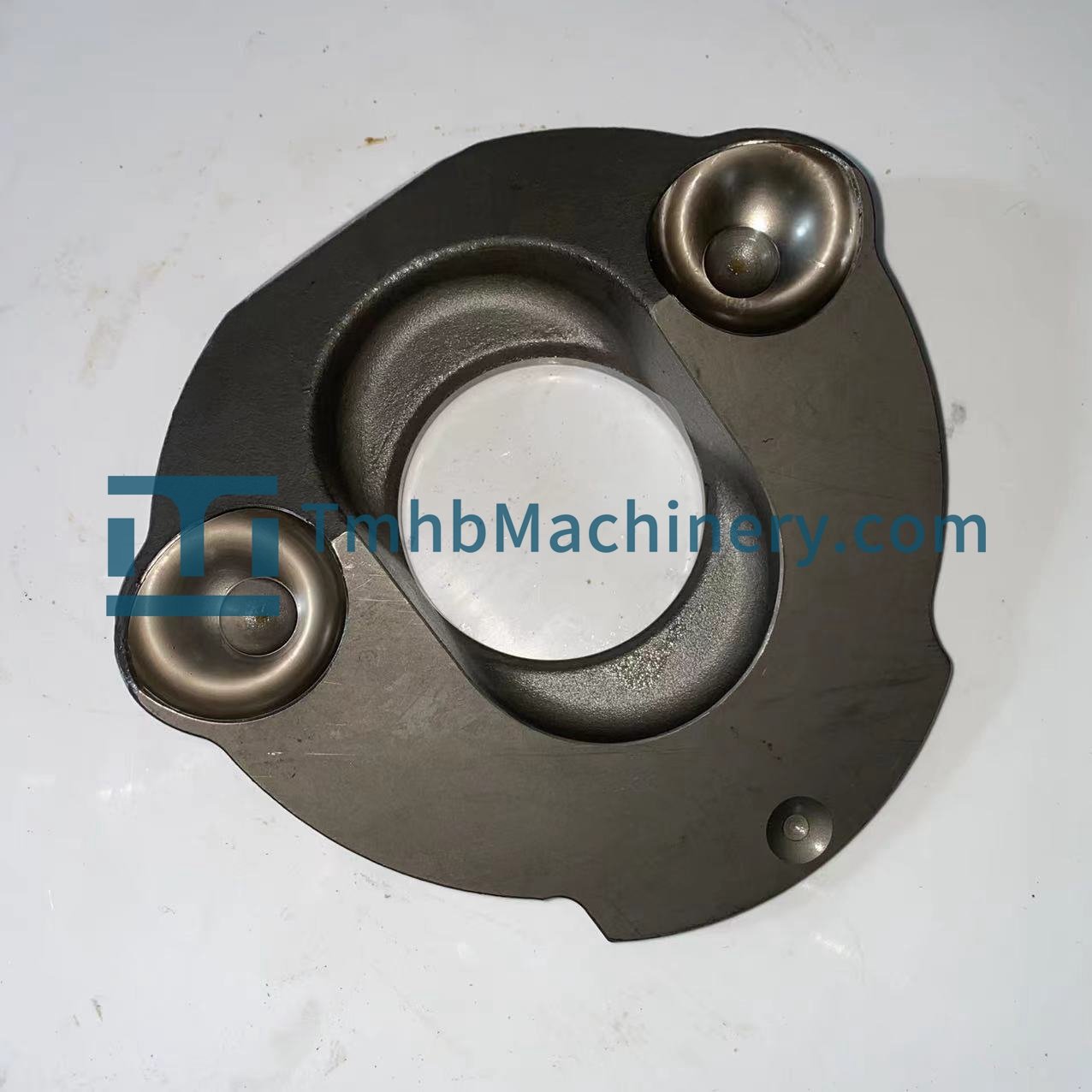

39Q8-41240 PLATE-SWASH
* 39K8-40101 Motor Assy-Travel 1
N*-1 39K8-41100 . Motor Unit-Travel 1
N*-1 39K8-41101 . Motor Unit-Travel 1
1 38Q8-41110 .. Case 1
K2 39Q6-41120 .. Plug 13
3 39Q8-41120 .. Seal-Oil 1
4 39Q8-41130 .. Block-Thrust 1
K5 S632-095004 .. O-Ring 1
6 S602-100001 .. Ring-Retainer C 1
NK7 39Q8-41150 .. Piston 1
NK8 39Q8-41160 .. Seal-Piston 1
9 39Q8-41170 .. Shaft 1
10 39Q8-41180 .. Bearing-Roller 1
K11 39Q8-41190 .. Bearing-Needle 1
12 S601-055001 .. Ring-Retainer C 1
13 S751-040004 .. Ring-Retainer C 1
14 39Q8-41210 .. Plate-Thrust 1
15 39Q8-41220 .. Ball-Steel 1
16 39Q8-41230 .. Pivot-Swash 2
17 39Q8-41240 .. Plate-Swash 1
NK18 39Q8-41270 .. Block-Rotary 1
K19 39Q8-41280 .. Spring 9
K20 39Q8-41300 .. Guide-Ball 1
K21 39Q8-41310 .. Plate-Retainer 1
K22 39Q8-41321 .. Piston&Shoe-Rotary (1ea) 9
22-1 39Q8-41332 … Piston 1
N22-2 39Q8-41340 … Shoe-Piston 1
23 39Q8-41351 .. Disc-Friction 6
24 39Q8-41360 .. Plate-Separator 7
25 39Q8-41370 .. Piston-Parking 1
25 39Q8-41370T1 .. Piston-Packing 1
K26 39Q8-41380 .. Ring-D 1
K27 39Q8-41390 .. Ring-D 1
N28 39Q8-41600 .. Plate-Valve 1
28 39Q8-41601 .. Plate-Valve 1
30 39K8-41420 .. Spring 14
*-2 @ . Travel Reduction Gear 1
K 39Q8-41140 Piston Kit-Swash 1
K 39Q8-41250 Rotary Kit-Motor 1
K 39Q8-41260 Block Kit-Rotary 1
K 39Q8-41290 Retainer Kit 1
K 39Q8-41560 O-Ring Kit-Trv Motor 1
K 39Q8-41570 Ring Kit-D 1
K 39K8-41440K Cover Kit-Rear 1
N @ Not Supplied Parts 1
